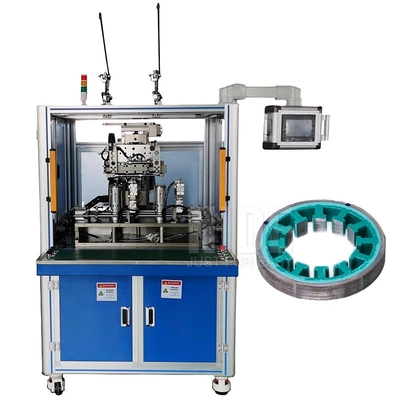

Factory Motor Wire Making Machine BLDC Stator Coil Winder Equipment Automatic Winding Machine For Sale

Electrical wire making machine stator coil winding BLDC winding machine with two working stations

(1) Machine function and characteristic:

1.The BLDC stator winding machine is suitable for winding BLDC stator.

2.The BLDC needle coil winding machine has two working stations.

3.The BLDC winding machine equips with servo system.

3.The BLDC coil winding can automatically intert wire end, winding, arraying, indexing, cutting, demolding.

4.When the stator winding machine is working, this machine can diagnose fault, count output, etc.

5.Other processes like auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed in the touch screen.

6.This BLDC stator needle winding machine is easy to operate and maintain.

(2) Technical parameter:

(3)Operating procedures:

1. Power on the BLDC winding machine
2. Thread the wire
3. Put stator to the working station table
4. Adjust the tooling according to different model stator
5. Set the stator diameter in the touch screen then select the pre-set data.
6. Press "start" button.
7. The needle winding Machine will automatically do winding.
8. Take out the stator

(4)Picture show

(5)Information needed for Automatic Stator Winding Machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.

Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
