Attribute: Simple Operated
Original: China(Mainland)

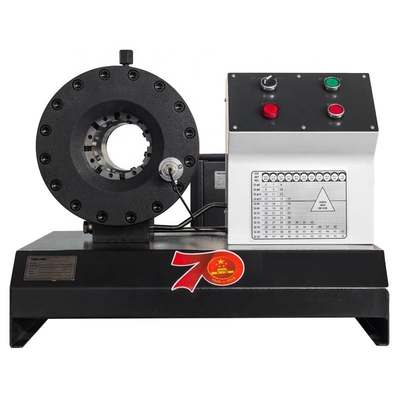

The power system was controlled by a control panel. There are three buttons and a indicator on the panel, simple design makes the
controls and operation very easy.
item | Hydraulic hose machine pressing automatic hose crimping machine |
Place of Origin | China |
Condition | New |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot product 2021 |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Bearing, Gearbox, Pressure vessel, Gear, Pump |
Brand Name | QDGY |
Machine Type | Hose Crimping Machine |
Voltage | 12V/24V |
Dimension(L*W*H) | 600*460*500mm |
Weight | 150KGS |
Certification | CE,ISO9001:2000;IATF16949 |
Warranty | one year |
Power (kW) | 3KW |
Key Selling Points | Easy to Operate |
After Warranty Service | Video technical support, Online support, Spare parts |
Local Service Location | None |
Showroom Location | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Mexico, Colombia, Sri Lanka, Japan, Malaysia, Australia |
Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Energy & Mining |
Product Name | high pressure hose crimping machine |
Crimping range | 3-61mm(1/8"-2 3/8") |
Max Hydraulic Hose | 1 1/2" ,4SP (ID 38mm) |
Max Opening | +21mm(5/6") |
Opening without Dies | 96mm ( 3 4/5") |
Master Die Length | 70mm( 2 3/4") |
Sytem Pressure | 31.5Mpa |
Max .Crimping Force | 1750KN(175T) |
Standard Voltage | 12V/24V |
Control | Automtic |
Packing | |
Size | 700(L) * 560 (W) * 600 (H) |
Weight | 155kgs |
Packaging Details | The normal package for our crimping machine is Wooden Plywood Crate. The outside package is standard export wooden case, and the inner package is stretch film or packaged according to customers special request. |
